An H7 headlight bulb can serve as a low beam or high beam, depending on the vehicle. The main challenge is finding a replacement that matches the factory socket, mounting system, housing space, and beam pattern.
This H7 headlight bulb guide explains fitment, LED and halogen differences, bulb compatibility, and correct installation. It also reviews the best H7 LED headlight bulbs for different driving needs.

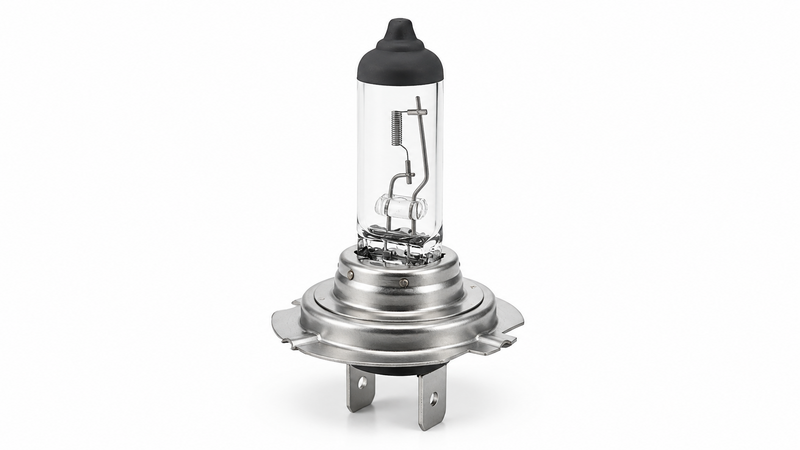

What Is an H7 Headlight Bulb and What Does It Fit?
An H7 headlight bulb is a single-beam automotive bulb with one light source. A vehicle normally uses a separate bulb for each low-beam or high-beam position, unlike a dual-beam bulb that handles both functions.
What Are the Main H7 Headlight Bulb Specifications?
A standard H7 halogen bulb uses a PX26d base and normally operates at 12 volts and 55 watts. Under UN Regulation No. 37 , the standard H7 rating is 1,500 lumens with a ±10% tolerance.
| Specification | Standard H7 halogen bulb |
| Beam function | Single beam |
| Common voltage | 12V |
| Common power | 55W |
| Base | PX26d |
| Typical positions | Low beam or high beam |
| Common light sources | Halogen or LED replacement |
Does an H7 Bulb Work as High and Low Beam?
An H7 bulb provides only one beam function in each socket. The same H7 bulb size may be used for the low beam in one vehicle and the high beam in another, but a single H7 bulb does not normally switch between both beams.
Some vehicles use H7 bulbs for both positions, with one bulb installed in each separate reflector or projector. Other vehicles combine an H7 low beam with a different high-beam bulb. Confirm the lighting position before ordering an H7 low-beam bulb or high-beam replacement.
What Cars Use H7 Headlight Bulbs?
H7 bulbs fit selected Audi, BMW, Ford, Hyundai, Kia, Mercedes-Benz, Volkswagen, and other vehicles. The correct bulb depends on the model year, trim, factory lighting system, and bulb position.
Different versions of the same vehicle may use halogen, HID, or LED lighting. Check the original bulb number, consult the owner’s manual, or use the vehicle fitment tool before choosing an H7 headlight bulb.

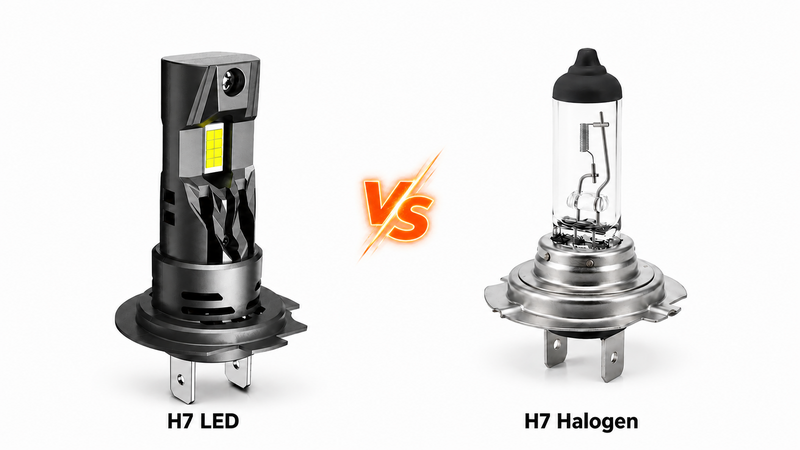

H7 LED Headlight Bulbs vs Halogen Bulbs: What Is the Difference?
H7 LED headlight bulbs produce whiter light, provide higher output, and usually last longer than H7 halogen bulbs. Halogen bulbs are smaller and simpler, but their filaments lose output over time and require more frequent replacement.
| Feature | H7 halogen bulb | H7 LED headlight bulb |
| Typical power | 55W per bulb | About 20–60W per bulb |
| Typical color temperature | 3200K–3500K | 5000K–6500K |
| Typical light color | Warm, yellowish white | Clear white to cool white |
| Typical service life | About 250–500 hours | Often rated at 20,000–50,000 hours |
| Light source | Heated filament | LED chips |
| Cooling | Heat radiates through the glass | Heat sink, fan, or copper tube |
| Installation size | Close to the original bulb size | Varies by cooling and driver design |
| Beam pattern | Designed around the factory filament | Depends on LED chip position |
A standard 12V H7 halogen bulb produces about 1,500 lumens at 55W, with a 3200K–3500K warm-white color. H7 LED bulbs generally provide higher published output and a whiter 5000K–6500K light.
Published lumens may use different test methods. IIHS headlight testing measures illumination on straight roads and curves while also checking glare. Compare H7 LED headlight bulbs by beam pattern, power, size, and cooling—not lumens alone.
Are All H7 Headlight Bulbs the Same?
No. H7 bulbs use the same basic fitment standard, but wattage, size, color temperature, cooling, and electrical compatibility vary.
H7 halogen bulbs are usually compact. H7 LED bulbs may include a fan, driver, or removable collar, so rear clearance and adapter requirements must be checked. LED chip position also affects the beam pattern and glare.
Is an H7 Bulb the Same as H11, 9005, or H4?
No. H7, H11, 9005, and H4 bulbs use different bases, connectors, and mounting systems.
| Comparison | Main difference |
| H7 vs H11 | H11 uses a plastic twist-lock base |
| H7 vs 9005 | 9005 uses a different keyed socket |
| H7 vs H4 | H4 commonly provides both high and low beams |
Always use an H7-compatible replacement when the vehicle requires an H7 bulb. Do not modify the mounting tabs or force another bulb size into the socket.
Can You Use a 100W H7 Headlight Bulb?
Do not install a 100W H7 halogen bulb unless the wiring and headlight are designed for that load. Standard H7 halogen bulbs are commonly rated at 55W, while 100W bulbs can create excess heat and damage the connector or wiring.
For H7 LED bulbs, check whether the wattage applies to one bulb or a pair. A 120W-per-set rating equals approximately 60W per bulb.
Best H7 LED Headlight Bulbs - Top Picks
The best H7 LED headlight bulb should match the vehicle’s H7 socket, fit inside the housing, form a controlled beam, and provide enough cooling for stable output. SEALIGHT recommends the S2, S2S, and S7S for different levels of brightness and installation needs.
| H7 LED bulb | Published output | Power per set | Color | Protection | Main advantage |
| SEALIGHT S2 | 14,000 lumens | 60W | 6500K | IP67 | Balanced everyday upgrade |
| SEALIGHT S2S | 28,000 lumens | 70W | 6500K | IP68 | Compact size and higher output |
| SEALIGHT S7S | 60,000 lumens | 110W | 6500K | IP68 | Maximum published output |
The lumen figures are published specifications for each two-bulb set. Output figures from different products should be considered together with beam pattern, bulb position, housing condition, and headlight aim.
Best Entry-Level H7 LED Headlight Bulb: SEALIGHT S2
The SEALIGHT S2 H7 LED Headlight Bulbs are our recommended entry-level choice for drivers who want a balanced upgrade for regular city, highway, and suburban driving.
Key specifications
- Output: 14,000 lumens per set
- Power: 60W per set
- Color temperature: 6500K
- Water resistance: IP67
- Cooling: Fan and copper heat-pipe structure
- Best suited to: Regular night driving and balanced performance
The S2 combines a fan and copper heat pipe to control heat during extended use. Its 14,000-lumen output and 6500K white light provide a balanced upgrade for city streets, suburban roads, and regular highway driving.
The S2 is our recommended H7 LED headlight bulb for drivers who value stable performance, practical brightness, and everyday reliability over maximum output.
Best Compact H7 LED Bulb for Compatible Projector Headlights: SEALIGHT S2S
The SEALIGHT S2S H7 LED Headlight Bulbs combine a compact 1:1-style design with 28,000 lumens per set, making the S2S suitable for compatible housings with limited installation space.
Key specifications
- Output: 28,000 lumens per set
- Power: 70W per set
- Color temperature: 6500K
- Water resistance: IP68
- Design: Compact, direct-fit structure
- Cooling: Three-stage heat-control system
- Best suited to: Dark suburban roads and tighter headlight housings
An H7 LED bulb for projector headlights must place its LED chips near the original halogen filament position. This alignment allows the projector lens and cutoff shield to control the beam. The compact S2S design helps reduce fitment problems, but drivers should still confirm the adapter, dust-cover clearance, and beam pattern.
Choose the S2S when installation space is limited or when a higher-output H7 LED upgrade is needed for roads with little surrounding light.
Brightest H7 Headlight Bulb: SEALIGHT S7S
The SEALIGHT S7S H7 LED Headlight Bulbs provide the highest published output among the three options, reaching 60,000 lumens per set.
Key specifications
- Output: 60,000 lumens per set
- Power: 110W per set
- Color temperature: 6500K
- Operating voltage: 9–32V
- Water resistance: IP68
- Cooling: Reinforced fan and copper heat pipe
- Best suited to: Long highway drives and very dark roads
The S7S uses an active fan and copper heat pipe to control the heat created by its higher output. The 9–32V operating range also supports a wider range of compatible vehicle electrical systems.
Choose the S7S when maximum published output is the priority and the headlight housing has enough room for the bulb and cooling system. After installation, check the beam height and upward stray light. More light is useful only when the housing directs that light onto the road.
How to Install and Position an H7 Headlight Bulb?
An H7 bulb must sit fully inside the mounting point with the correct orientation. A loose mounting collar, incorrect adapter, or rotated LED chip position can create dark spots, a weak cutoff, or glare.
A typical H7 headlight bulb replacement follows these steps:
- Turn off the vehicle and allow the original bulb to cool.
- Open the hood and remove the headlight dust cover.
- Disconnect the original bulb connector.
- Release the retaining clip or adapter.
- Remove the original H7 bulb without forcing the mount.
- Install the new bulb and secure the retaining system.
- Connect the wiring and reinstall the dust cover.
- Test both headlights before driving.
Avoid touching the glass of an H7 halogen bulb. Oil from the skin can create a hot spot that shortens the filament bulb’s life.
Do H7 LED Bulbs Need an Adapter?
Some vehicles use a separate clip or holder that cannot secure an H7 LED bulb directly. Check the original mount before installation and use the correct H7 adapter when required. Do not bend the clip or modify the socket.
How Should You Position an H7 Bulb?
Install an H7 bulb fully and keep the mounting collar flat. On most two-sided H7 LED bulbs, the LED chips should face left and right to reproduce the original filament position. Recheck the orientation if the beam has dark spots or excessive upward light.
How Do You Check the H7 Headlight Beam Pattern?
Park on level ground facing a wall and check both beams for:
- Even left-to-right coverage
- A controlled low-beam cutoff
- Matching beam height
- No large dark spots
- Limited light above the cutoff
Official government headlamp aim guidance recommends checking bulb alignment and headlight aim after a bulb change. If reseating the bulb does not improve the LED headlight beam pattern , the bulb may not match the headlight optics.
Why Does an H7 LED Bulb Flicker or Show a Warning?
Flicker or a dashboard warning may result from a loose connection or the vehicle detecting the LED’s different electrical load. Check the connector and bulb seating first. If the problem remains, the vehicle may need a compatible CANbus decoder .
FAQs About H7 Headlight Bulbs
Can You Use H7 LED Bulbs in Projector Headlights?
Yes. Use an H7 LED bulb with correctly positioned chips and enough space for the adapter, cooling system, and dust cover. After installation, confirm that the projector produces an even beam and a clear cutoff.
Should H7 Headlight Bulbs Be Replaced in Pairs?
Yes. Replace H7 headlight bulbs in pairs to maintain matching brightness, color, and beam balance. If one aging bulb fails, the other bulb may also be close to the end of its service life.
How Long Do H7 Headlight Bulbs Last?
H7 halogen bulbs commonly last about 250–500 hours. H7 LED bulbs are often rated for 20,000–50,000 hours, although operating temperature and cooling performance affect their actual service life.
Conclusion
Choose the right H7 headlight bulb by confirming the lighting position, mounting method, and available space. A compatible H7 LED bulb provides whiter light, higher output, and a longer service life than a standard halogen bulb.
Among SEALIGHT’s H7 options, the S2 is the balanced entry-level choice, the compact S2S provides a stronger easy-fit upgrade, and the S7S offers the highest published output. Regardless of the model, secure the bulb correctly and inspect the beam pattern before driving.
