SEALIGHT’s LED Combo Kit for the 2009–2012 Ford F-150 delivers a complete lighting upgrade with brighter output, durable construction, and easy plug-and-play installation.

This combo is built to modernize your F-150’s most important visibility and safety points—forward lighting, bad-weather coverage, rear signaling, and reversing. The S7S headlight bulbs produce a crisp, high-output beam that makes lane edges, signs, and roadside obstacles easier to pick up at speed. Force F1 fog light bulbs add a focused 6000K white beam for improved close-range visibility in rain or fog without unnecessary glare. In the rear, SLJ3 red brake/tail bulbs increase light intensity for clearer stop signaling, while 921/912 reverse LEDs brighten the area behind your truck to reduce blind spots when backing. Every bulb is designed for a straightforward OEM-style fit, giving you a high-value, all-in-one upgrade without the hassle of piecing together separate sets.

2009–2012 Ford F-150 Bulb Size Replacement & SEALIGHT LED Specs

Main Features of SEALIGHT LED Bulbs

LED Headlight Bulbs (SEALIGHT S7S Series – H13/9008)

SEALIGHT chose the S7S Series for this 2009–2012 Ford F-150 combo because it’s engineered for drivers who want maximum forward visibility without complicated installs. They are the best and brightest LED headlight bulbs for your 2009-2012 Ford F-150. The high-output, bright-white beam improves down-road clarity and helps reveal hazards earlier—especially useful on unlit highways, rural roads, and work routes. A proactive cooling design helps maintain stable performance for long-term reliability.

• Color Temperature: 6500K Bright White
• Output: 33,000LM/set (16,500LM/bulb)
• Power: 130W/set (65W/bulb)
• Lifespan: Over 60,000 hours
• Waterproof Grade: IP68
• Cooling Method: Proactive
• Package: 2 bulbs (1 pair)

LED Fog Light Bulbs (SEALIGHT Force F1 Series – H10/9145/9140)

The Force F1 Series is selected for the F-150’s fog/DRL position because it balances real-world performance with a compact, halogen-like form factor. The focused beam pattern improves near-field visibility in poor weather while staying controlled to reduce glare. It’s a true plug-and-play upgrade designed to fit cleanly and run reliably.

• Color Temperature: 6000K White
• Output: 6000LM/pair
• Power: 20W/pair
• Waterproof Grade: IP67
• Lifespan: 30,000 hours
• LED Chips: 54 SMD chips/pair
• Package: 2× LED fog bulbs, 1× user manual

LED Brake Light Bulbs (SEALIGHT SLJ3 Series – 3157/3156 Red)

For rear safety on a 2009–2012 Ford F-150, SEALIGHT uses the SLJ3 Series because it’s built for high-output signaling and thermal stability. With strong red illumination and a performance-focused cooling design, these bulbs help make braking and tail light visibility more obvious to vehicles behind you—day or night.

• Color: Red
• Output: 3200LM
• Power: 30W/pair
• Voltage: 12V
• Waterproof Grade: IP68
• Lifespan: 50,000 hours
• LED Chips: 36× 3030 SMD chips/bulb

LED Reverse Light Bulbs (SEALIGHT J1 Series – 921/912)

SEALIGHT selected the J1 Series reverse bulbs to give your F-150 a noticeable increase in rearward visibility without adding load on the electrical system. The crisp 6000K white light improves clarity behind the truck when backing into tight areas, lining up to trailers, or reversing in unlit spaces. Built-in smart driver design supports stable performance and quick response.

• Series: J1
• Bulb Size: T15 / 921 / 912 / W16W
• Color Temperature: 6000K White
• Output: 2000LM
• Power: 8W/bulb
• Voltage: 12V
• Waterproof Grade: IP67
• Lifespan: 30,000 hours
• LED Chips: 9× 3030 SMD chips/bulb

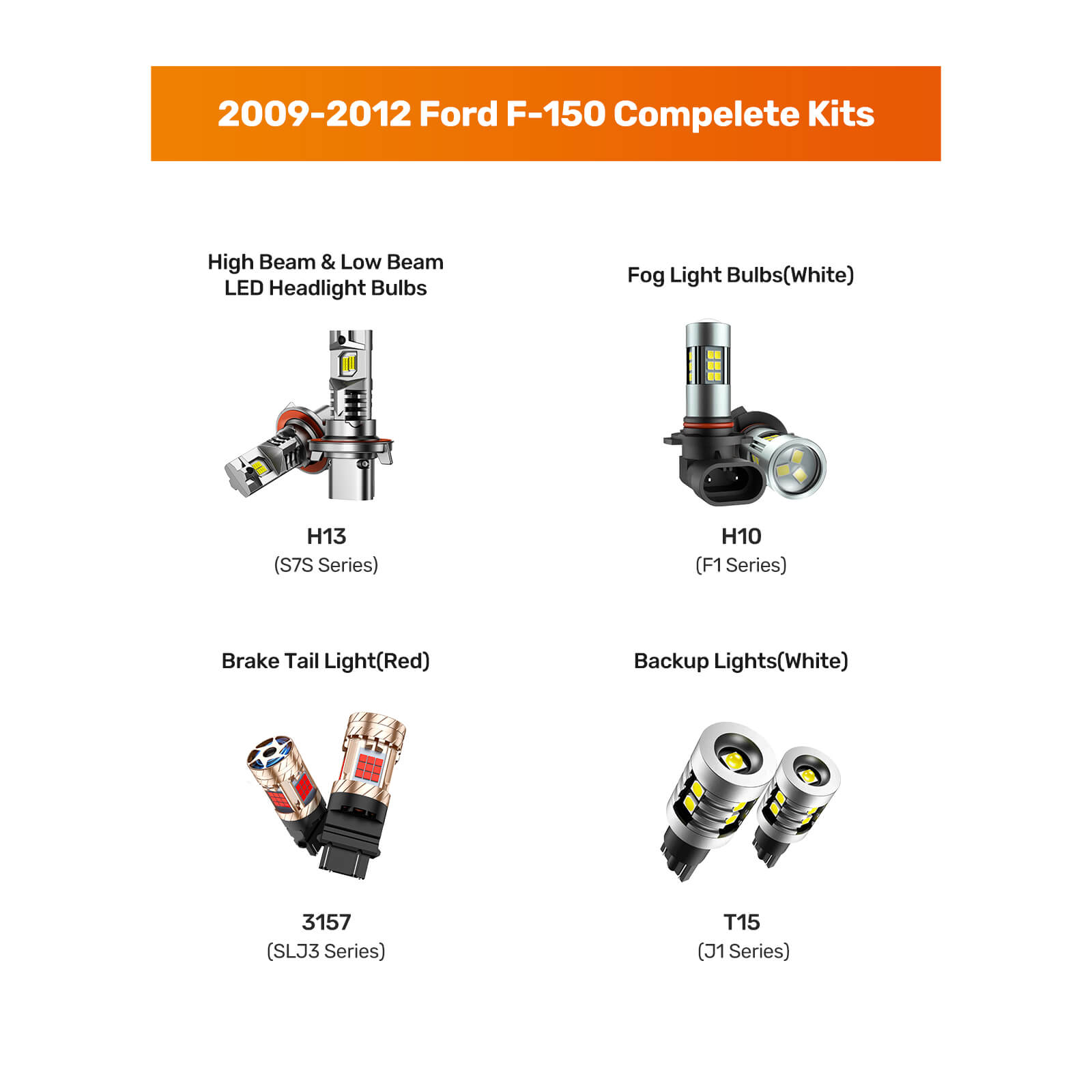

Combo Package Included

• 2× SEALIGHT S7S H13/9008 LED headlight bulbs (1 pair)
• 2× SEALIGHT Force F1 H10/9145/9140 LED fog light bulbs (1 pair)
• 2× SEALIGHT SLJ3 3157/3156 red LED brake/tail bulbs (1 pair)
• 2× SEALIGHT J1 921/912 LED reverse/backup bulbs (1 pair)
